Home Store

SC-BPS

Compatible Baseplate Set

SC-BP

Compatible Baseplate

Lightweight & Durable

SIRUI Design Patent Quick Release System

Compatible & Universal

Various Mounting Points

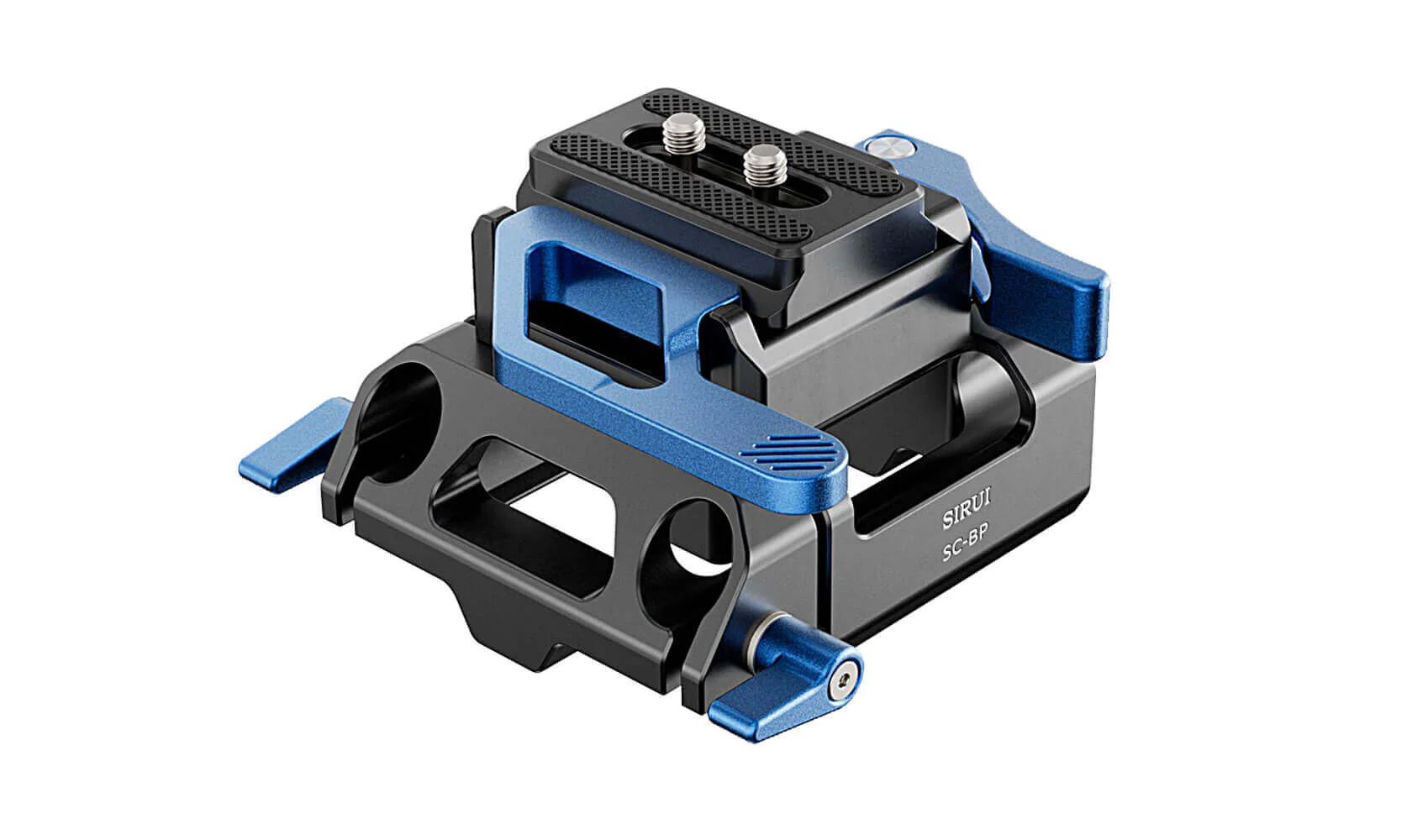

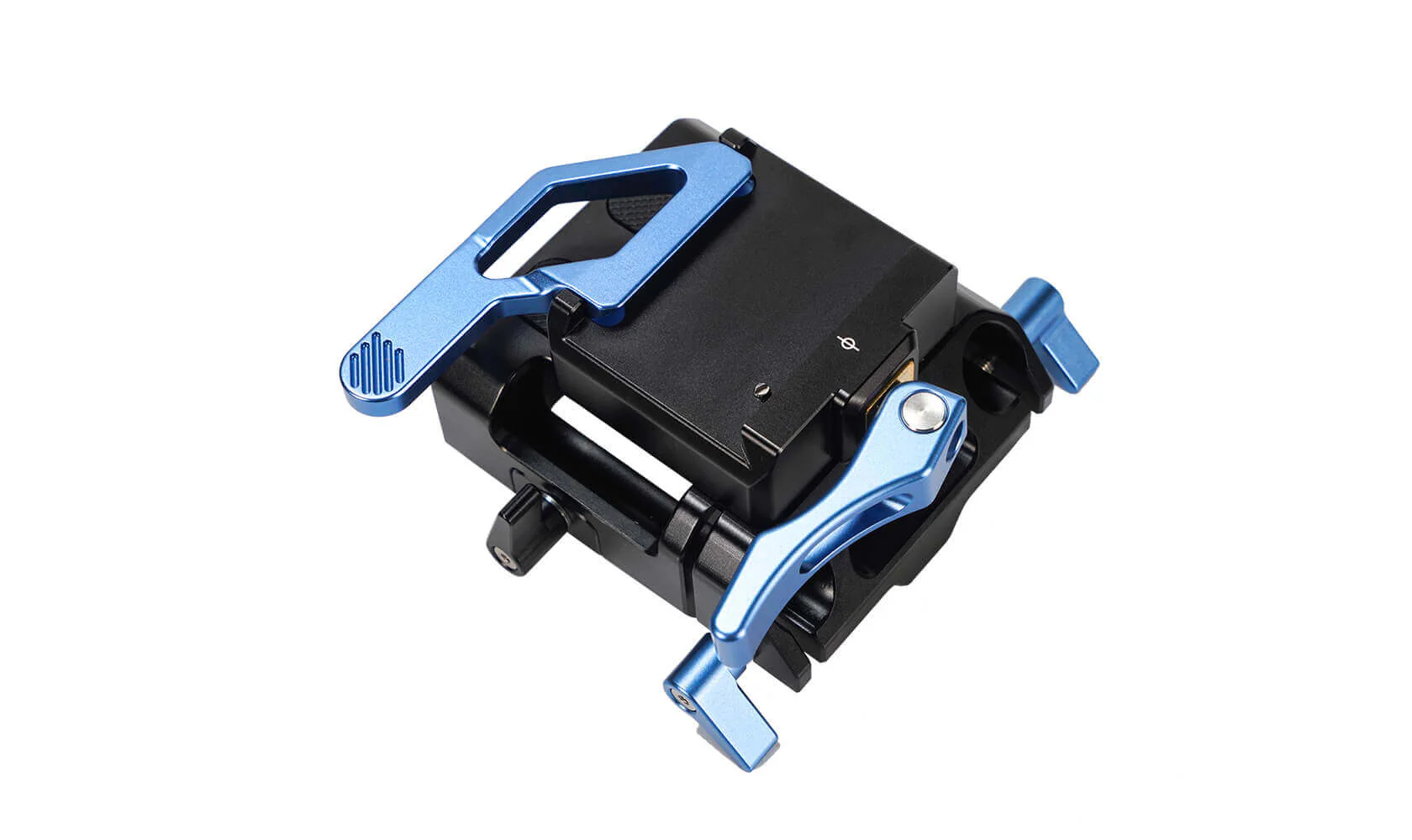

SC-BP Compatible Baseplate

Mount your camera onto a quick release plate, ARRI dovetail plate, head or tripods with this compatible baseplate. Besides, SIRUI Design Patent Quick Release System allows easy shooting.

Arca-swiss Clamp

Universal Baseplate

Removable Arca-swiss Quick Release Clamp

Compatible Baseplate with Cinema Camera

Quick Release Clamp with Head

Quick Release Clamp with Stabilizer

Durable and Lightweight Hollow Design

Constructed with strong Aluminum Alloy, the baseplate is extremely durable. Additionally, the hollow design at the bottom makes it lighter but at the same time still stable, with the maximum load of 15kg.

15KG

Max. Load

Lighter Hollow Design Aluminum Alloy

SC-BP Weight 465g

SC-BPS Weight 650g

SIRUI Design Patent Quick
Release System

SIRUI Design Patent Quick Release System allows fast insert and detach within 3 seconds, which helps save time during shooting. Double-Insurance Locking System prevents camera from accidental sliding.

How to Detach

Pull

Press

Pick

How to Insert

Side Loading

Press

Lock

Inset from the side and lock tightly, available for heavy equipment using.

Double-Insurance Locking System
prevents camera from accidental sliding

Anti-Slip
Rubber Pad

Safety Screw

Flip Lock

Use the Allen key
to adjust tightness

How to Use:

1. Mount your camera on the Arca-swiss quick release plate and insert the plate to the clamp.
2. Camera cage with Arca-swiss can be inserted to the clamp directly.

*Use the Allen key to detach baseplate. Align the screws at the screw holes and mount it in two directions.

Compatible

It is compatible with ARRI dovetail plate and you can also mount it on other quick release plates via the 1/4”-20 or 3/8”-16 Threaded Hole at bottom.

ARRI Dovetail Plate Locking Screw.
Locking Lever Pull and adjust direction.

Move back and forth smoothly

Two 1/4”-20 Threaded Holes 3/8”-16 Threaded Hole 38.5mm/1.52in

Distance between screws no less than 38.5mm

*Use screws to make it stable.

Universal

This rod set let you attach 15mm rod-mounted accessories to your rig.

Various Mounting Points

Accessories can be added via 1/4”-20 screws and 3/8”-16 screws.

1/4”-20 screws

3/8”-16 screws

Lighter
Multi-Hole Design

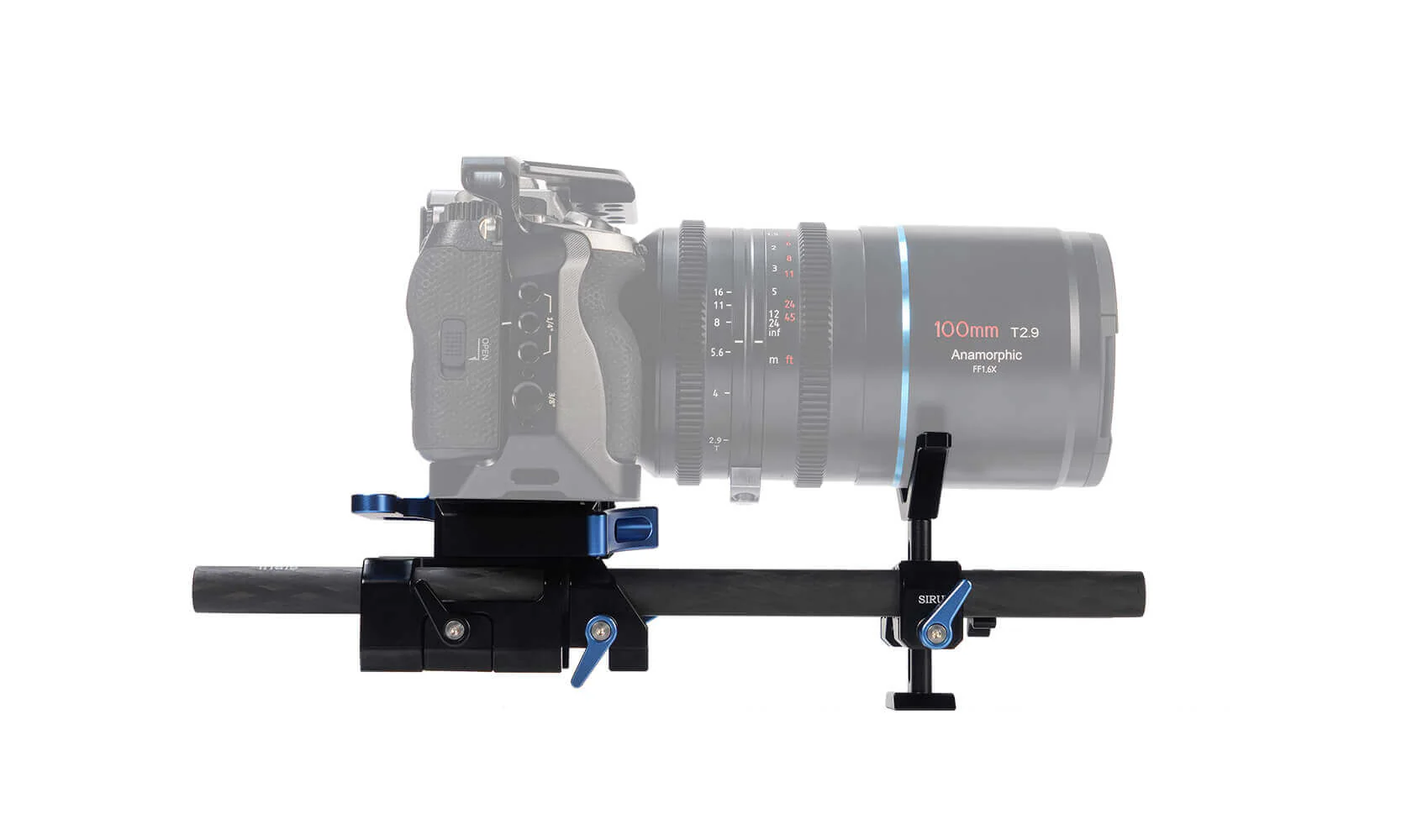

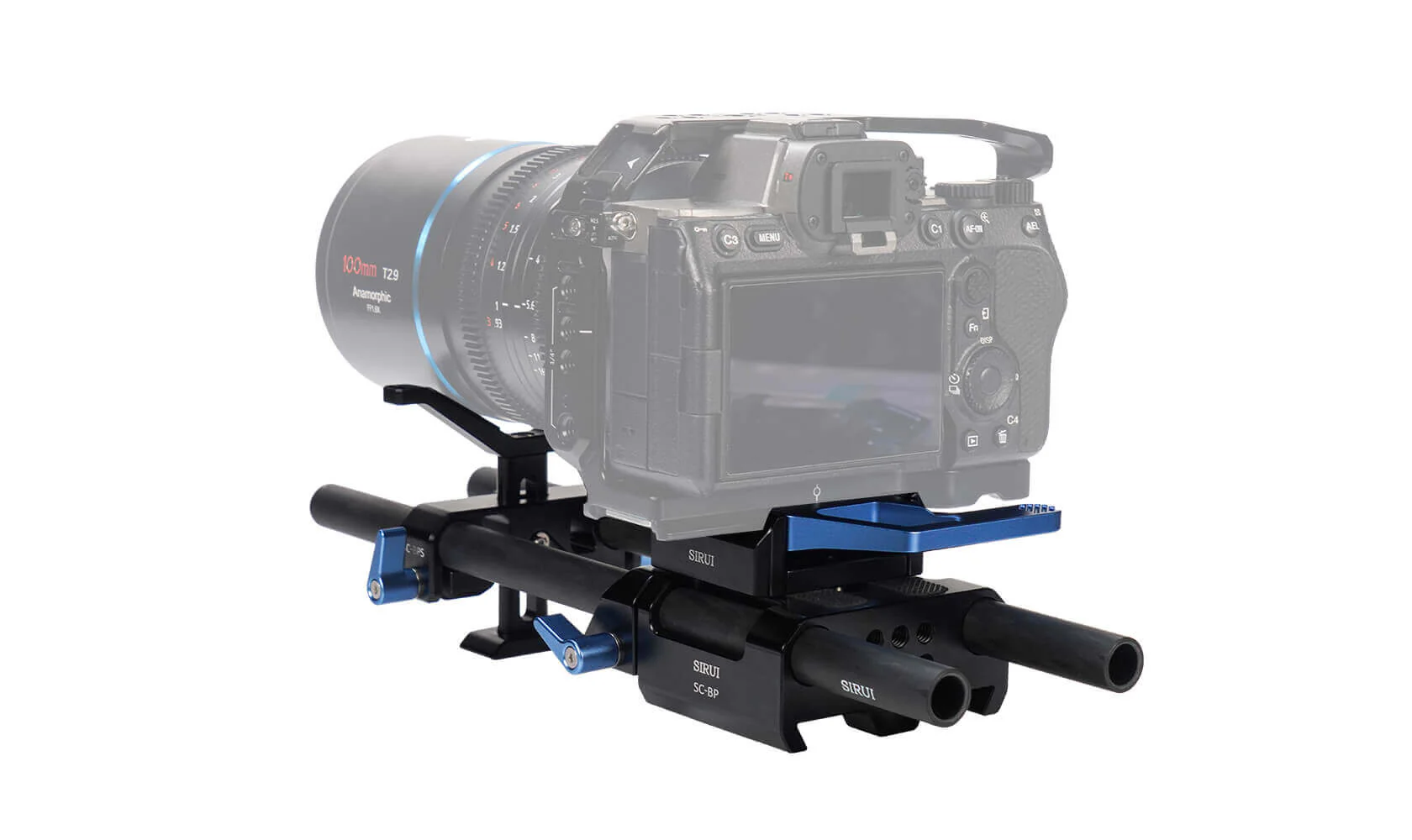

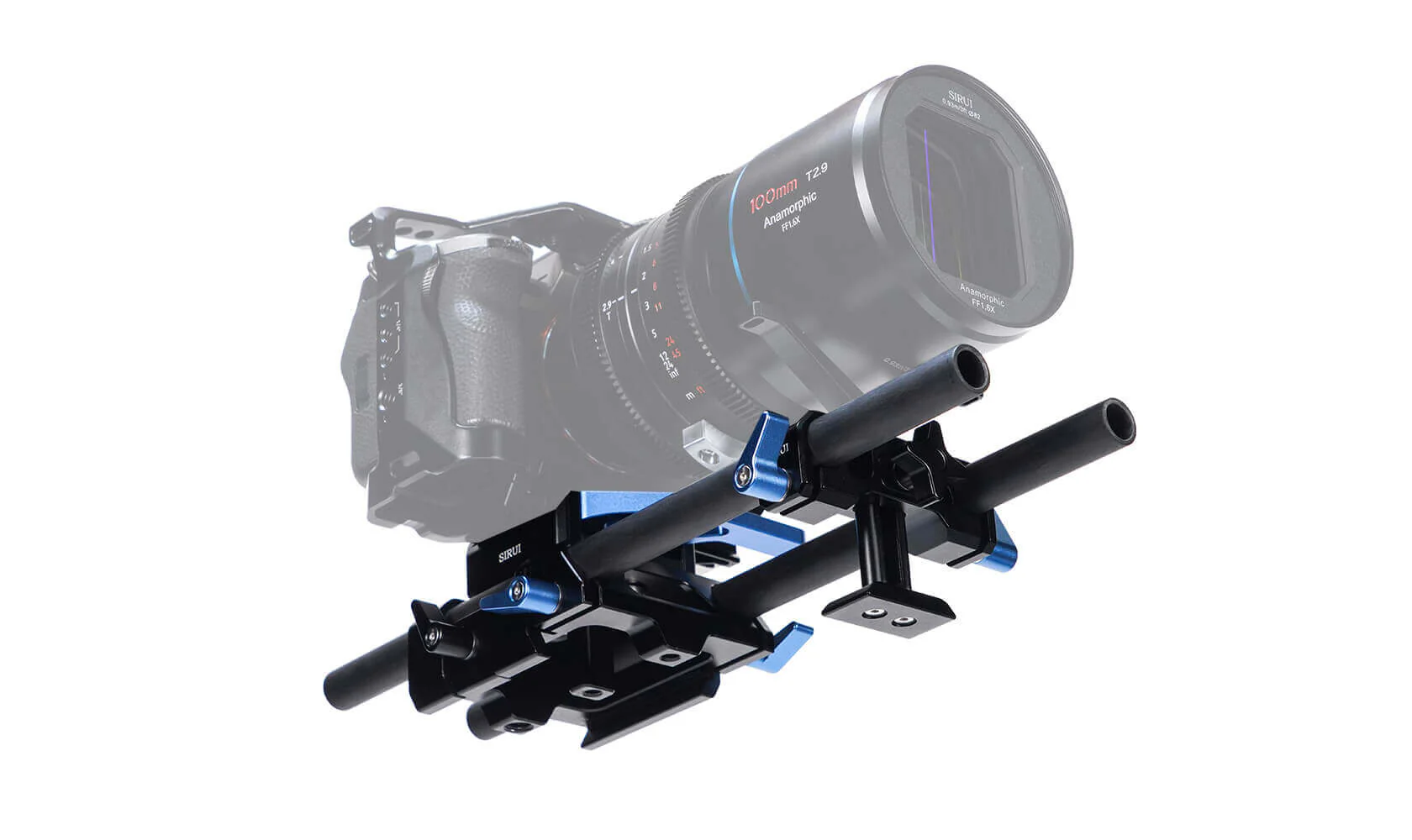

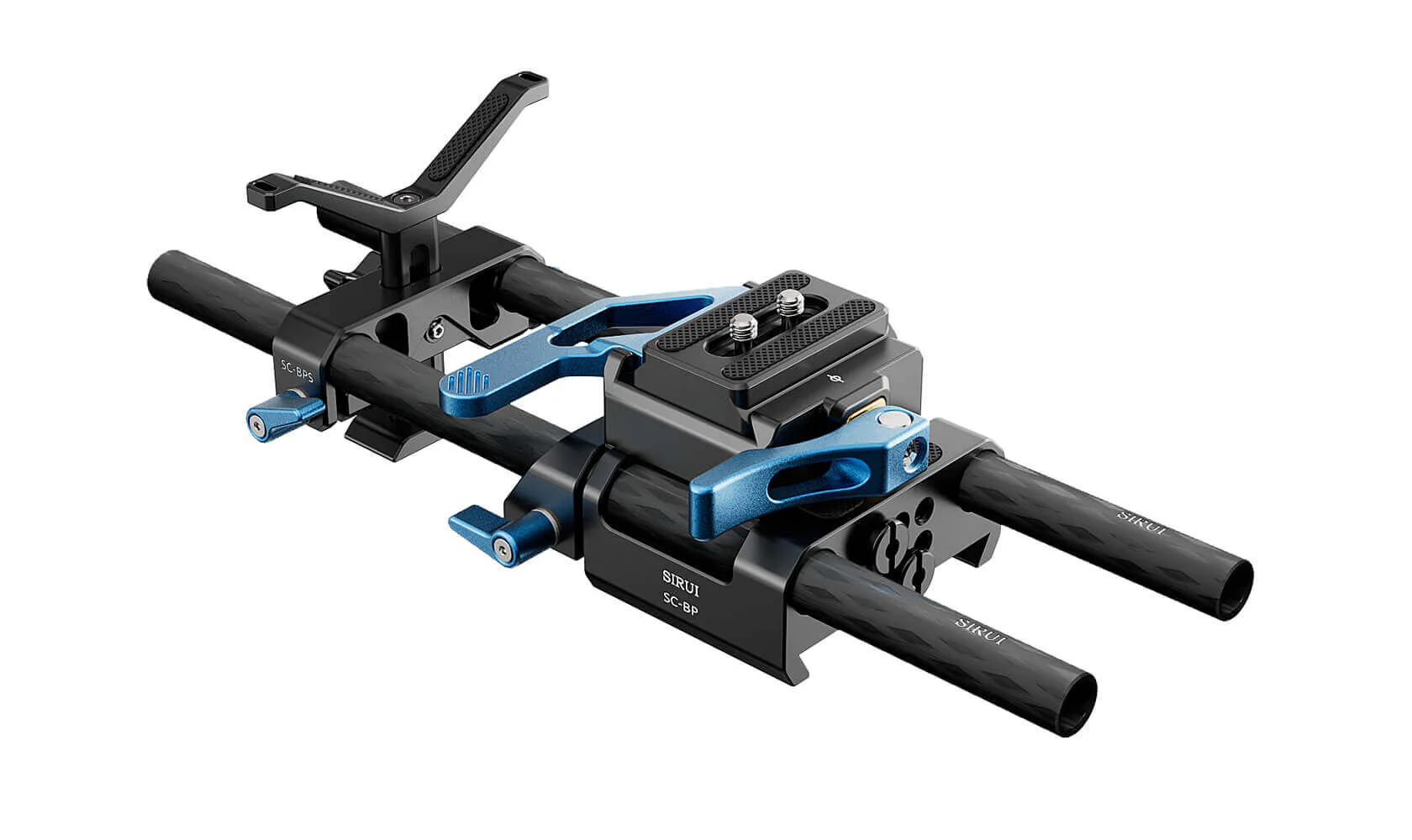

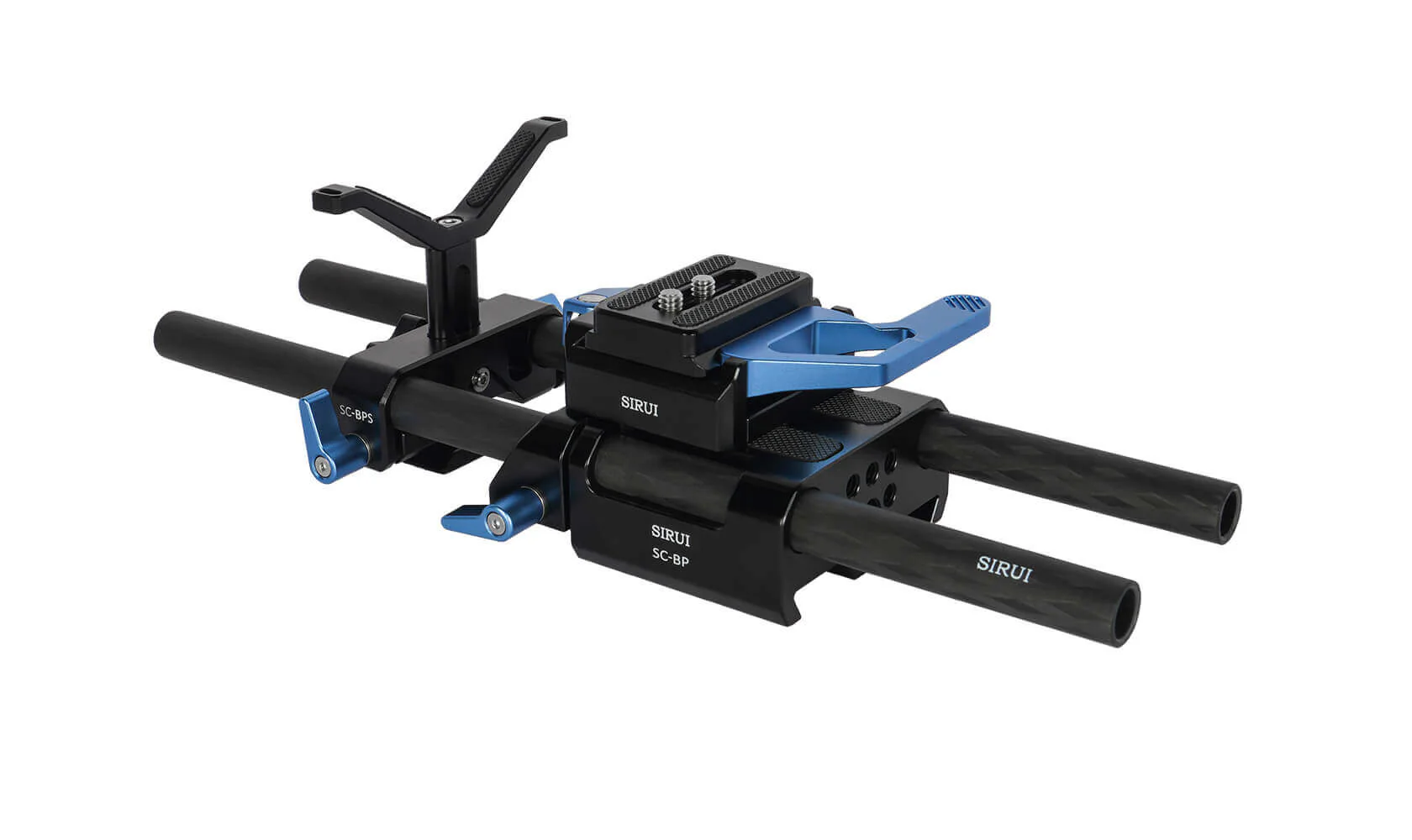

SC-BPS Compatible Baseplate Set

SIRUI SC-BPS Compatible Baseplate Set is combined with SIRUI SC-BP Compatible Baseplate and detachable 15mm carbon fiber rods as well as Y-shaped lens support.

15mm Carbon Fiber Rod*2

Arca-Swiss Quick Release Plate*1

Y-Shaped Lens Support*1

Baseplate with Dual Rod Clamp*1

Wedding

Music video

Interviews

Indie film

Commercial shooting

Lightweight Carbon Fiber Rods

Follow focus, lens support, matte box, V-mount battery plate and other accessories can be added to the baseplate via 15mm rods. And you can adjust the accessories back and forth via two locking knobs.

*Baseplate

Rod Dia: 15mm

Locking Knob

*Baseplate with Follow Focus

*Baseplate with Follow Focus and Matte Box

Y-Shaped Lens Support

The Y-shaped lens support helps carry the weight of lens with a diameter from 50 to 140mm. You can adjust the height within a range of 55mm via the quick release knob. And it is compatible with 15mm dual rod clamp. Built-in rubber pads helps protect your camera.

Rubber Pad

Quick
Release Knob

Locking knobs can be pulled for convenient adjustment. (Except the Quick Release Knob)

What’s in the Box?

SC-BP
Compatible Baseplate

Baseplate with Dual Rod Clamp*1

Side Release Arca-Swiss Quick Release Baseplate + Arca-Swiss Quick Release Plate*1

1/4”-20 Screw*5

3/8”-16 Screw*1

Allen key*1

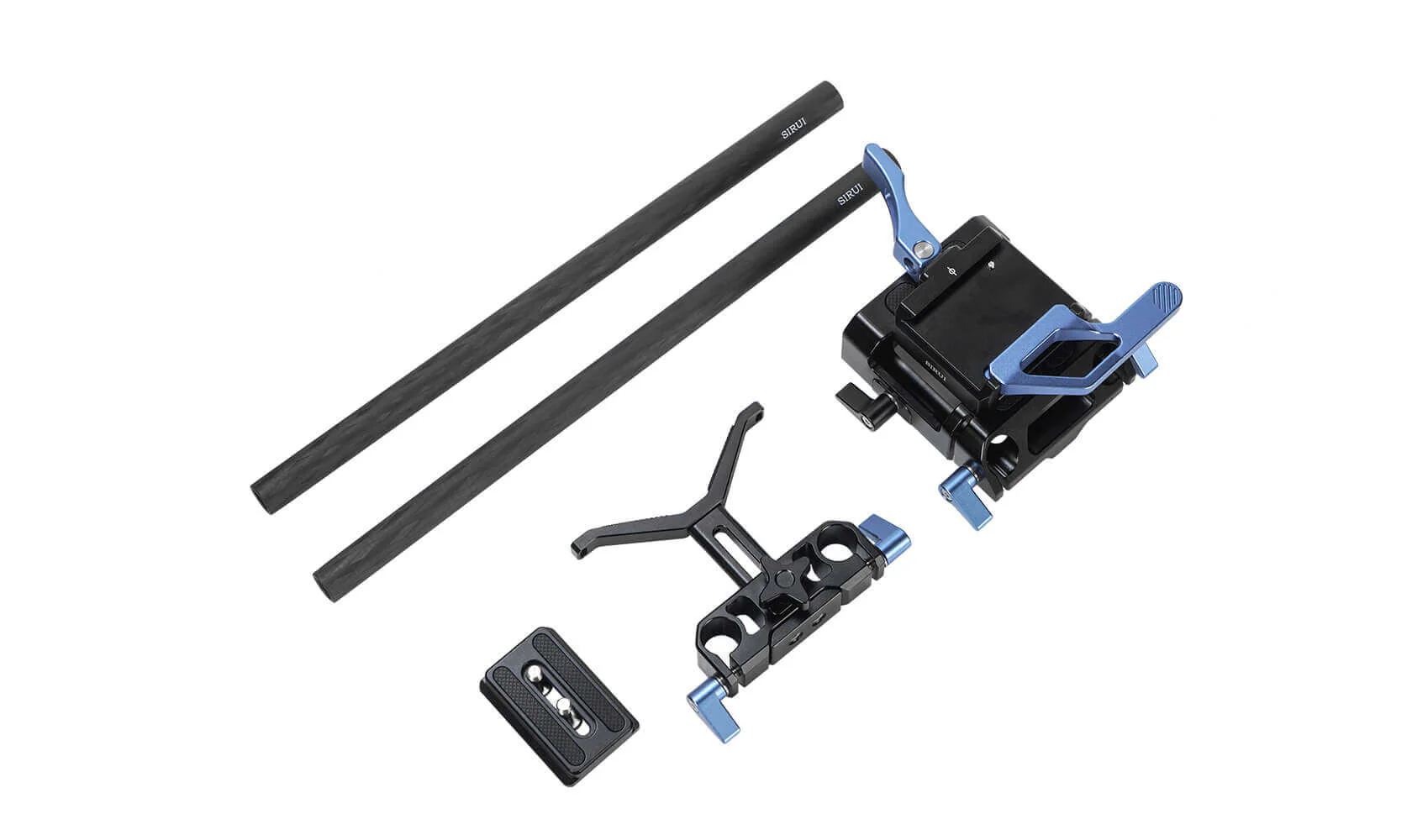

SC-BPS
Compatible Baseplate Set

Baseplate with Dual Rod Clamp*1

Side Release Arca-Swiss Quick Release Baseplate + Arca-Swiss Quick Release Plate*1

Y-Shaped Lens Support*1

15mm Carbon Fiber Rod*2

1/4”-20 Screw*5

3/8”-16 Screw*1

Allen key*1
