SIRUI TS-M Series TeIescope Mobile Phone Adapter

SIRUI TS-M Series TeIescope Mobile Phone Adapter

SIRUI TS-M Series
Telescope Mobile Phone Adapter
TS-M1丨
TS-M2丨
TS-M3丨
Universal Fitting
High Compatibility
Easy Focus
Universal Fitting
SIRUI TS-M Series Telescope Mobile Phone Adapter includes three models, TS-M1/TS-M2/TS-M3, to meet various needs. This adapter fits eyepiece diameter from 39mm to 44mm, and is also compatible with SIRUI Beyond Series binoculars or spotting scope.
9mm
yepiece Outer Diameter
B1042A-BK
B1042A-GN
42mm
Eyepiece Outer Diameter
B1042B-MD-BK
B1042B-MD-GN
44mm
Eyepiece Outer Diameter
S6080A-BK
S6080A-GN
TS-M1
Suitable for 39mm eyepiece. You can mount this adapter on
SIRUI B1042A Series Binoculars.

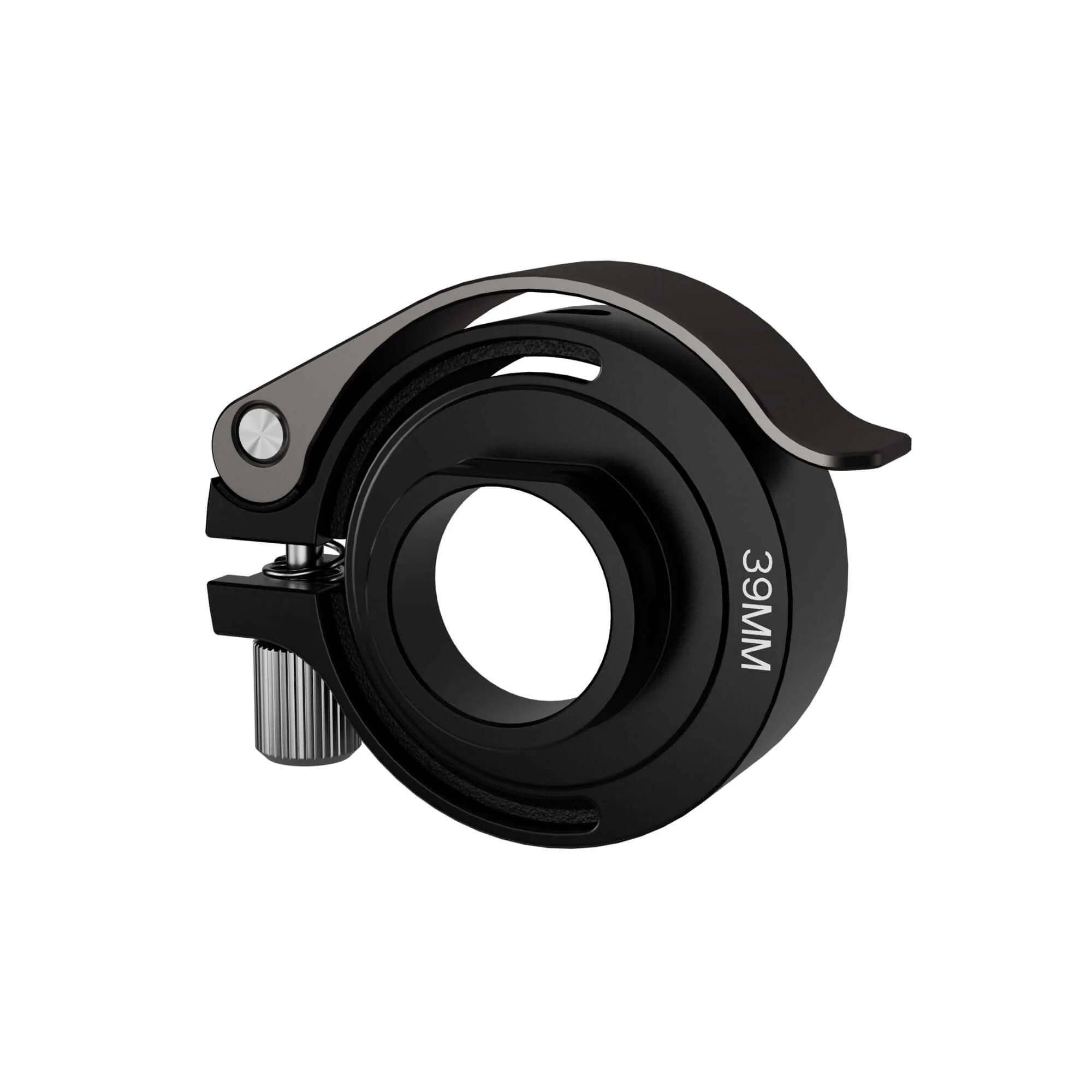

39mm Rubber Ring
*The binoculars is sold separately.
TS-M2
Suitable for 44mm/42mm eyepiece. You can mount this adapter on SIRUI B1042B-MD Laser Rangefinding Binoculars or S6080A Spotting Scope.

C-shape rubber ring fits different eyepiece diameter.

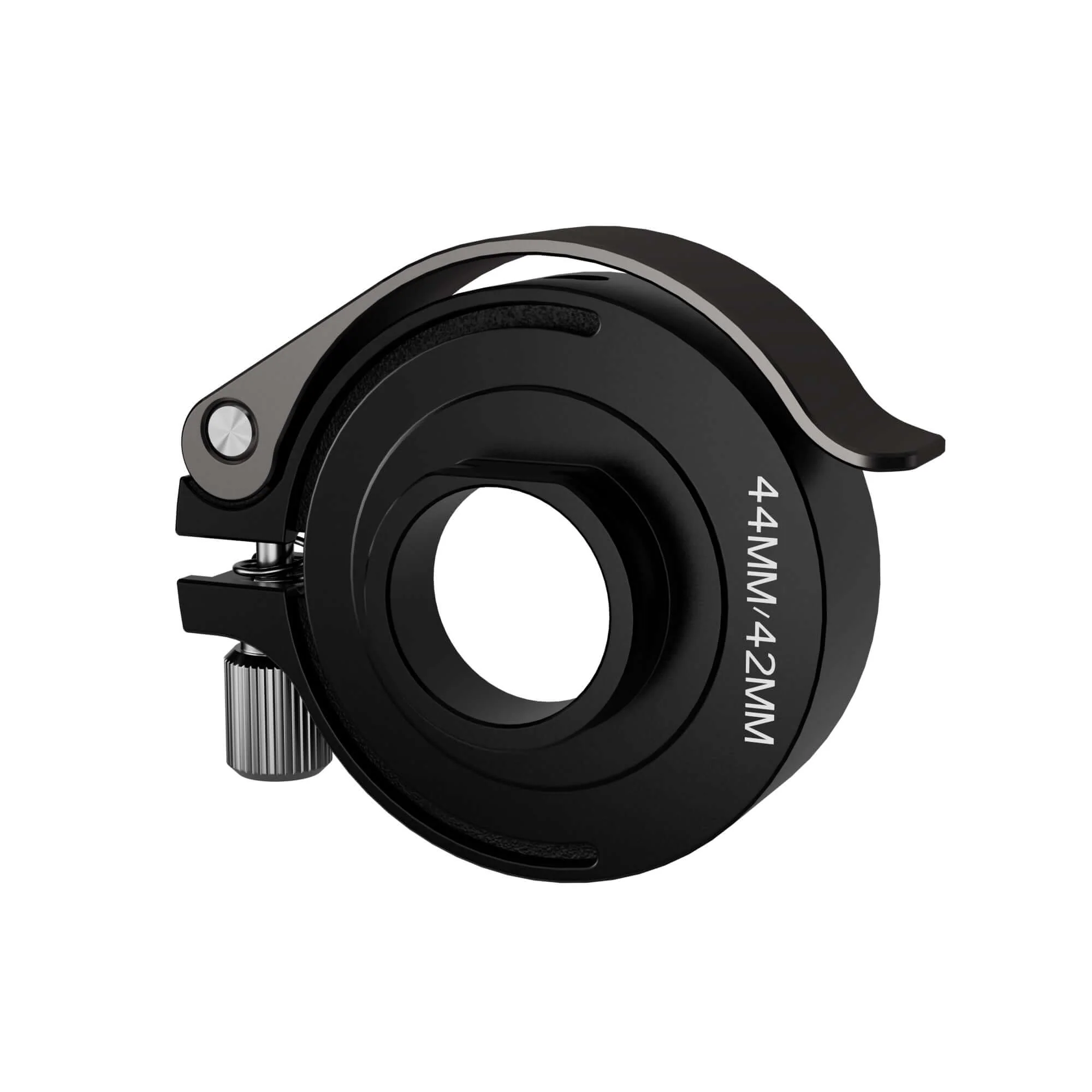

42mm Rubber Ring
44mm Rubber Ring
*The spotting scope and binoculars are sold separately.
TS-M3
Suitable for 39mm, 42mm/44mm eyepiece. You can mount this adapter on SIRUI B1042A Binoculars, B1042B-MD Laser Rangefinding Binoculars, S6080A Spotting Scope, etc.

C-shape rubber ring fits different eyepiece diameter.
42mm Rubber Ring
44mm Rubber Ring
*The spotting scope and binoculars are sold separately.

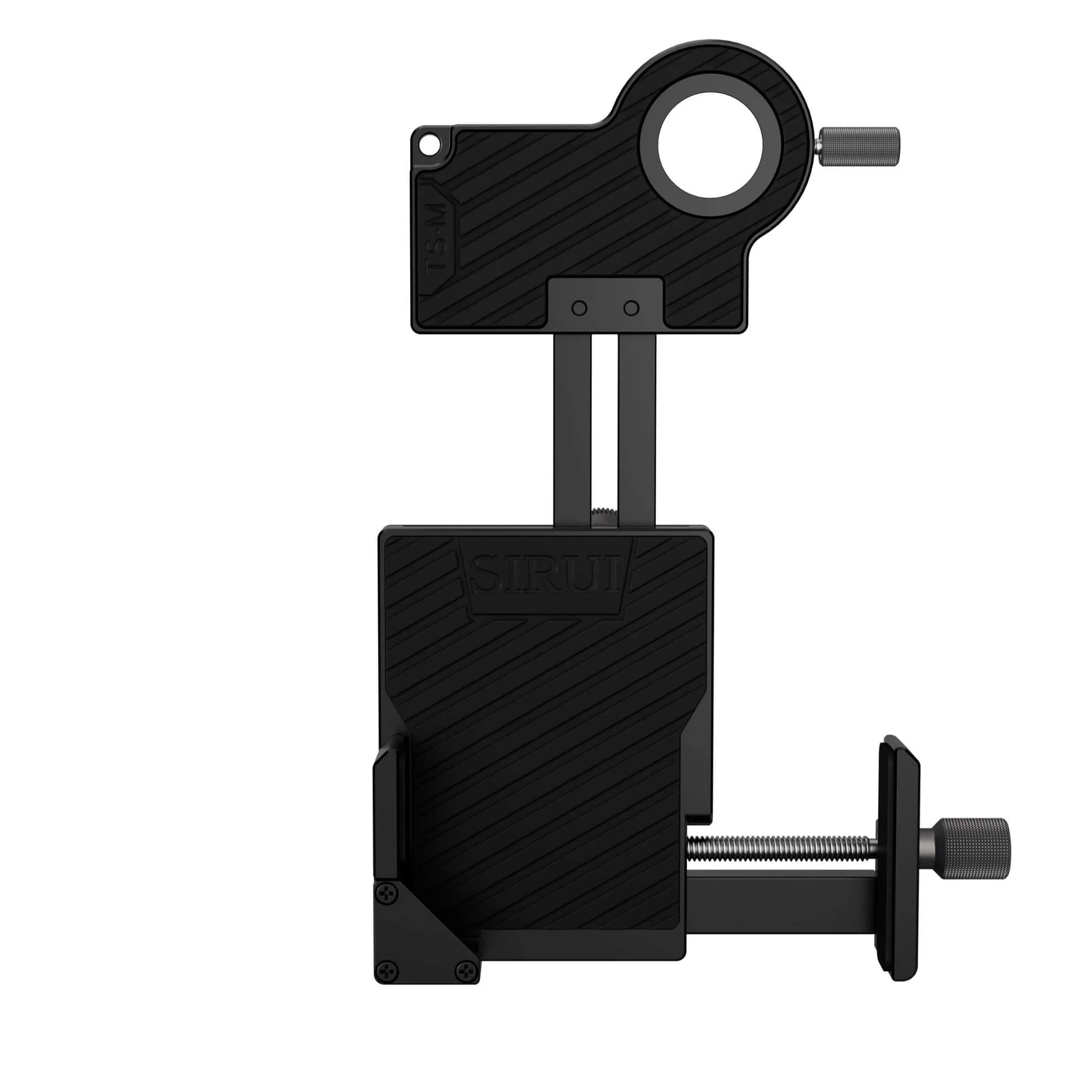

Name of Part
Clamp Locking Knob
Positioning Knob
Mobile Phone Clamping Knob
Wide Clamping Range
Fit nearly all mobile phone for the width from 53mm to 83mm.
Twist Lock
53~83mm
Clamping Range
Anti-slip
Rubber Pad
How to Install
Loosen the phone clamp knob.
Insert your phone.
Lock the phone clamp knob.
Loosen the positioning knob and align the hole with the phone lens.
Tighten the positioning knob.
Take out the corresponding adapter ring and open the flip lock.
Mount the adapter ring on the eyepiece.
Close the flip lock.
Specifications
Model
TS-M1
TS-M2
TS-M3
Weight
220g/0.5lb
220g/0.5lb
270g/0.6lb
Dimensions
141*94*48mm/
5.6*3.7*1.9inch
141*94*48mm/
5.6*3.7*1.9inch
141*94*48mm/
5.6*3.7*1.9inch
Color
Black
Black
Black
Compatible Equipment
Binoculars:
B1042A-BK,
B1042A-GN
Laser Rangefinding Binoculars:
B1042B-MD-BK,
B1042B-MD-GN
Spotting Scope:
S6080A-BK,
S6080A-GN
Laser Rangefinding Binoculars:
B1042B-MD-BK, B1042B-MD-GN
Binoculars:
B1042A-BK,
B1042A-GN

Spotting Scope:
S6080A-BK,
S6080A-GN
Select Model
From $26.60

Original: $76.00

-65%
SIRUI TS-M Series TeIescope Mobile Phone Adapter—

$76.00

$26.60
